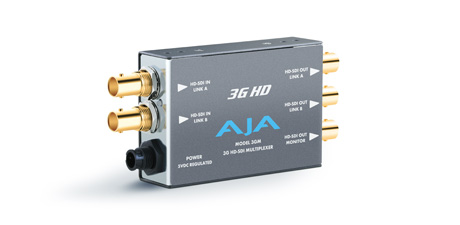

3G/1.5G HD-SDI Multiplexer

Series: HD
Model: 3GM
  • Compact 3G to/from 1.5G conversion
  • SMPTE425M-AB inputs, 3G outputs configurable to A or B
  • Converts SMPTE425M A to/from SMPTE425M B
  • Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
  • Fully equalizing and re-clocking with jitter attenuation
Project List
Product Info
Tech Specs
Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is also compatible with SMPTE259M 270Mb SDI.
  • Compact 3G to/from 1.5G conversion
  • SMPTE425M-AB inputs, 3G outputs configurable to A or B
  • Converts SMPTE425M A to/from SMPTE425M B
  • Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
  • Fully equalizing and re-clocking with jitter attenuation
  • Passes all ancillary data
